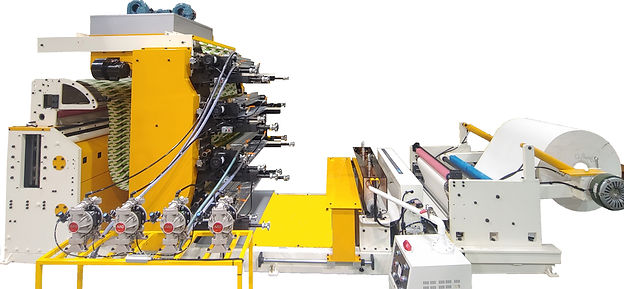

FLEXO PRINTING AND
PUNCHING MACHINE
FPPM-ES2023
For Single & Double Side Coated Paper
General Description
Flexo Printing & punching machine is designed for printing and blanking of paper roll.
Application of Machine
Flexo printing & punching machine produces printed paper blank
for paper cup, paper salad bowl and so on.
Production Range
2.5oz ~ 150oz Blank, 60cc ~ 1100cc
Model : FPPM-ES2023-A4
lnk Pump Type is?
The equipment of ink feeding system is Air-pump type
It is a special method and also clean for operation
The machine is used for both single-sided coating and double-sided coating paper.
Size Range of Printing and Blanking
LAYOUT OF Printing and Blanking
.jpg)
4 Color Printing sample (single coated paper)
sidewall(blank/fan) after punching
Lay-out of Machine (fppm-es2023-A4)
FPPM-ES2023_1.jpg)
Main Configuration
1. Paper roll die cutting
2. Flexographic Printing
3. Edge Position Control for Web Guide
4. Auto Tension control with Powder Brake
5. Tracking the I-Mark(Photo mark) system
6. Mitsubishi Servo with Trio Motion Control
7. Automatic Collecting
8. Automatic Stripping
9. Corona Treatment for Double coated paper
10. Ink supply with Air-pump
Specification of Machine
.png)
Youtube Video
Flexo Printing & Punching
Machine Inline (FPPM-ES2023-A4)
